XAML StandardUICommand.Kind

By Fons Sonnemans, 27-nov-2018

I'm in the process of learning the new Windows SDK Preview. This SDK has made it possible to set the Kind property of a StandardUICommand. The StandardUICommand was added in the 1809 SDK (17763) but the StandardUICommandKind property was readonly which made it impossible to use from XAML. You could only set the Kind using a constructor parameter in code. Now you can define the StandardUICommand in XAML inside your AppBarButton, MenuFlyoutItem and MenuBarItem.

Demo

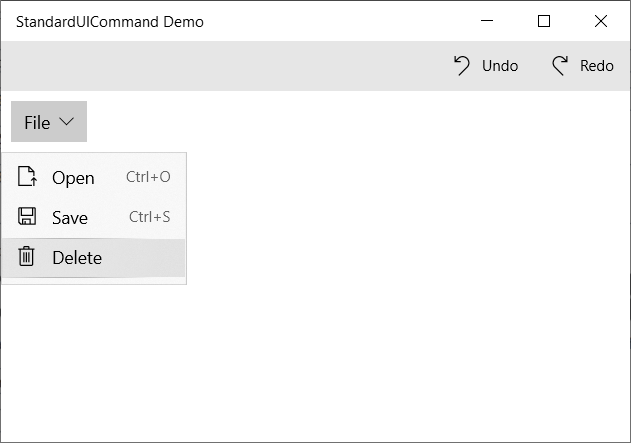

I have created a small demo page with a CommandBar and a DropDownButton (also new in the 1809 SDK). The CommandBar has 2 AppBarButton controls (Undo & Redo). The Command property of these buttons are set to a StandardUICommand with the Kind values 'Undo' and 'Redo'. The DropDownButton has a flyout menu with 3 FlyoutMenuItems in it. The Commands of these items are also set to a StandardUICommands. The StandardUICommand will set the Icon, Label/Text, Tooltip and KeyboardAccelerator of the button/item.

The possible value for Kind are:

  • None
  • Cut
  • Copy
  • Paste
  • SelectAll
  • Delete
  • Share
  • Save
  • Open
  • Close
  • Pause
  • Play
  • Stop
  • Forward
  • Backward
  • Undo
  • Redo

The XAML of the page

<Page x:Class="App3.MainPage"
      xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
      xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
      xmlns:local="using:App3"
      xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
      xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
      mc:Ignorable="d"
      Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="1*" />
        </Grid.RowDefinitions>
        <CommandBar DefaultLabelPosition="Right">
            <AppBarButton>
                <AppBarButton.Command>
                    <StandardUICommand Kind="Undo" />
                </AppBarButton.Command>
            </AppBarButton>
            <AppBarButton>
                <AppBarButton.Command>
                    <StandardUICommand Kind="Redo" />
                </AppBarButton.Command>
            </AppBarButton>
        </CommandBar>


        <DropDownButton Content="File" Margin="8"
                                      Grid.Row="1" VerticalAlignment="Top">
            <DropDownButton.Flyout>
                <MenuFlyout>
                    <MenuFlyoutItem>
                        <MenuFlyoutItem.Command>
                            <StandardUICommand Kind="Open" />
                        </MenuFlyoutItem.Command>
                    </MenuFlyoutItem>
                    <MenuFlyoutItem>
                        <MenuFlyoutItem.Command>
                            <StandardUICommand Kind="Save" />
                        </MenuFlyoutItem.Command>
                    </MenuFlyoutItem>
                    <MenuFlyoutItem>
                        <MenuFlyoutItem.Command>
                            <StandardUICommand Kind="Delete" />
                        </MenuFlyoutItem.Command>
                    </MenuFlyoutItem>
                </MenuFlyout>
            </DropDownButton.Flyout>
        </DropDownButton>
    </Grid>
</Page>

Closure

It is great that the Kind property can now be set. This saves me a lot of work setting the Icon, Label/Text, Tooltip and KeyboardAccelerator of AppBarButtons and MenuItems manually.

Fons
